DASH M-Series

Compact. Modular. Versatile.

The DASH M-Series: Scalable Hydrogen Storage Solutions for Residential, Industrial, and Large-scale Applications

The DASH M-Series is a “Modular” storage system which redefines hydrogen storage with its compact design. Engineered for efficiency and adaptability, it offers a cost-effective solution for small to large-scale hydrogen applications, including solar energy storage, metal processing, power generation, and more.

Product Advantages

High Storage Density

Each DASH M module stores up to 30 kgH2 per cubic meter at system level, optimizing space and maximizing storage capacity in compact environments.

Modular and Scalable Design

The system’s modular nature easily adapts to growing demands, ensuring users can expand capacity as needed.

Low Levelized Cost of Storage (LCOS)

With no need for costly compression or liquefaction, DASH M offers an attractive levelized cost of storage, ensuring both efficiency and affordability over its lifecycle.

Long Service Life

DASH M modules ensure over 20 years of reliable use. After 10.000 cycles, full storage capacity remains available, supporting up to 45 bar outlet pressure.

Low Emissions

DASH M operates emission-free, making it a sustainable choice for hydrogen storage.

Superior Safety Standards

Our proven and patented solid-state hydrogen storage technology leads to excellent safety properties allowing for the installation in almost any environment, even indoors in basements.

Available Versions

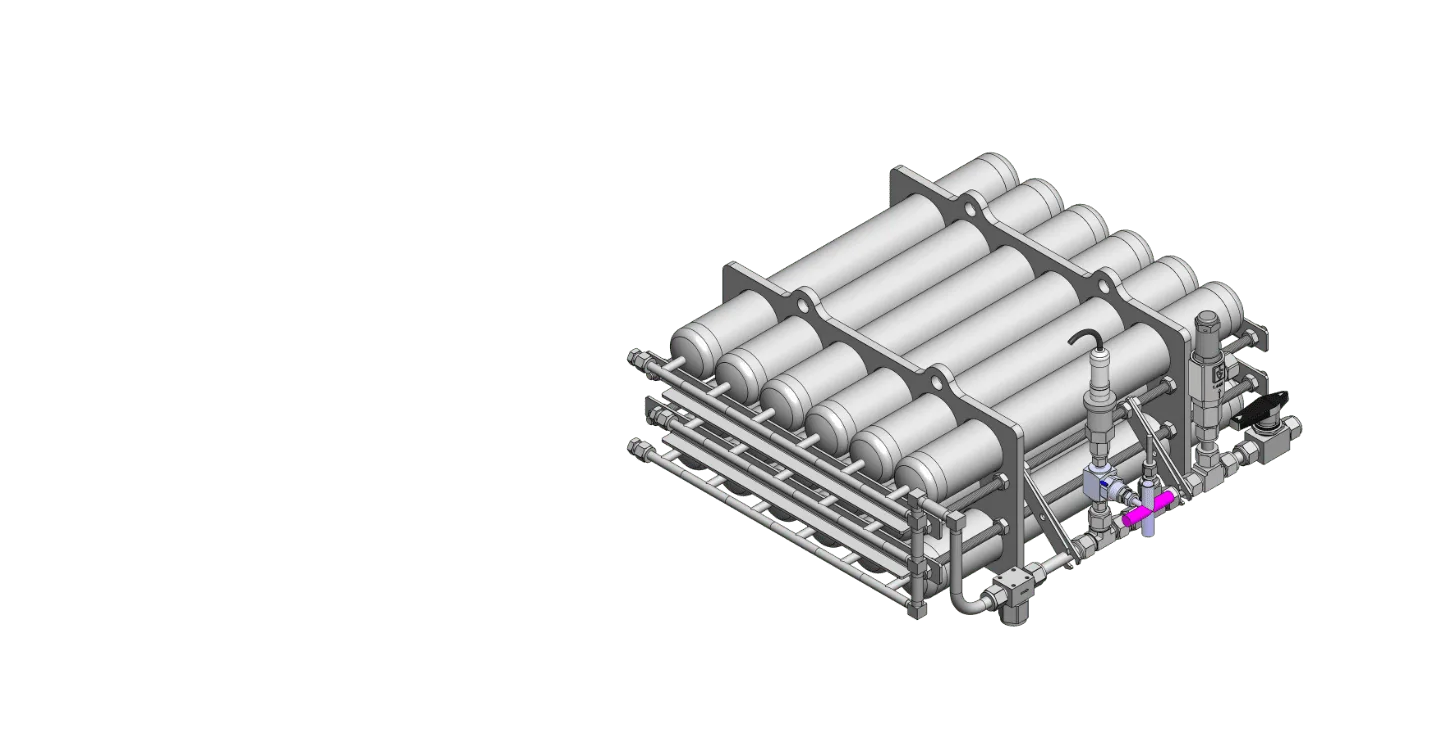

DASH M1

Hydrogen Storage Capacity: 1 kgH2
Weight: 111 kg
Dimensions (LxWxH): 0.55x0.44x0.22 m

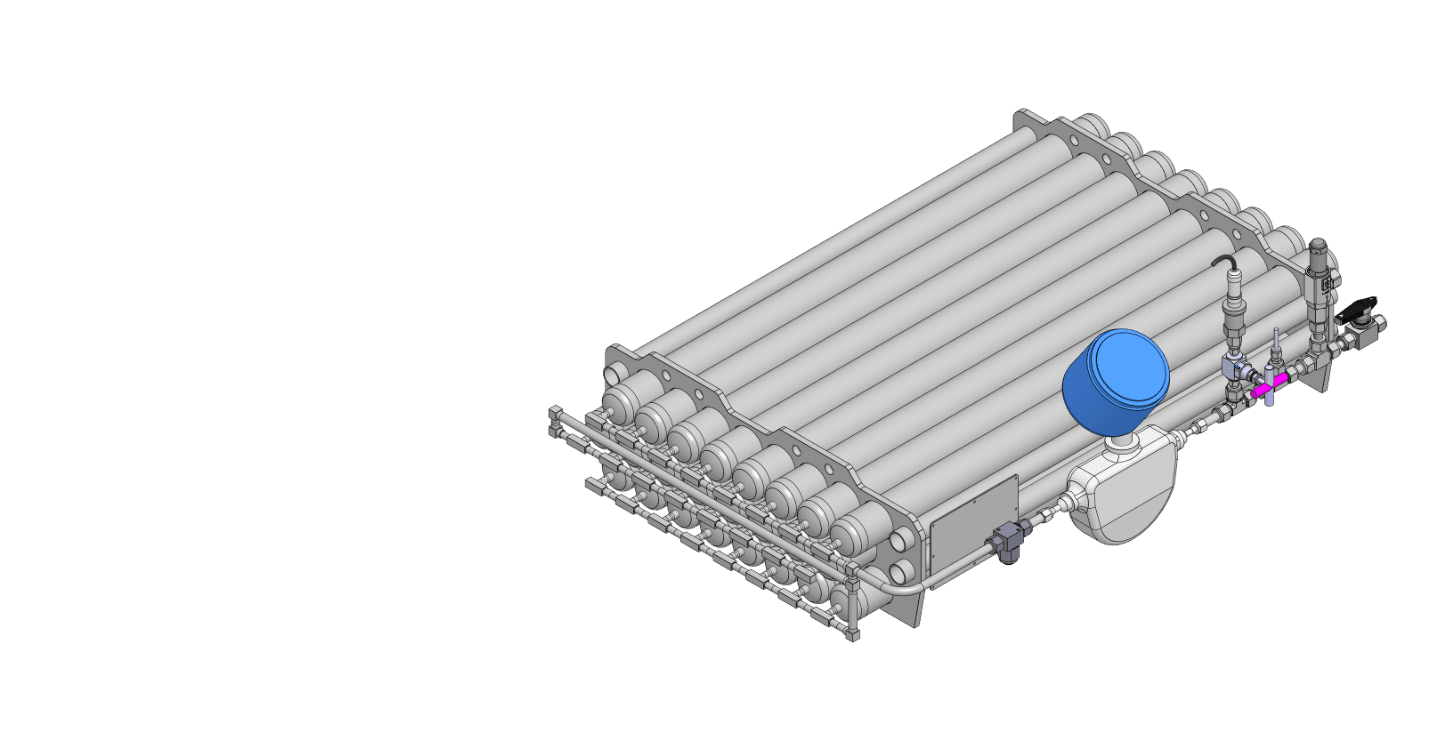

DASH M3

Hydrogen Storage Capacity: 3 kgH2
Weight: 315 kg
Dimensions (LxWxH): 1.05x0.65x0.22 m

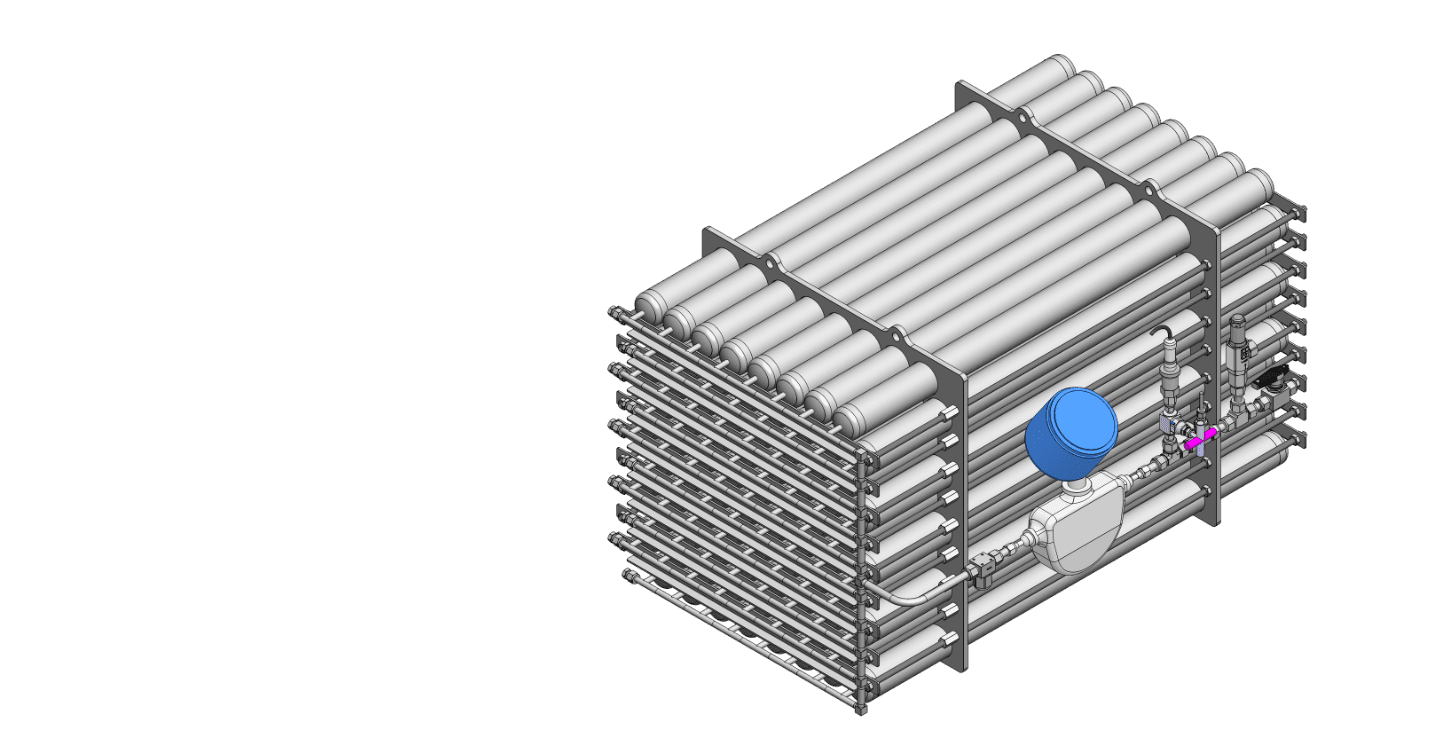

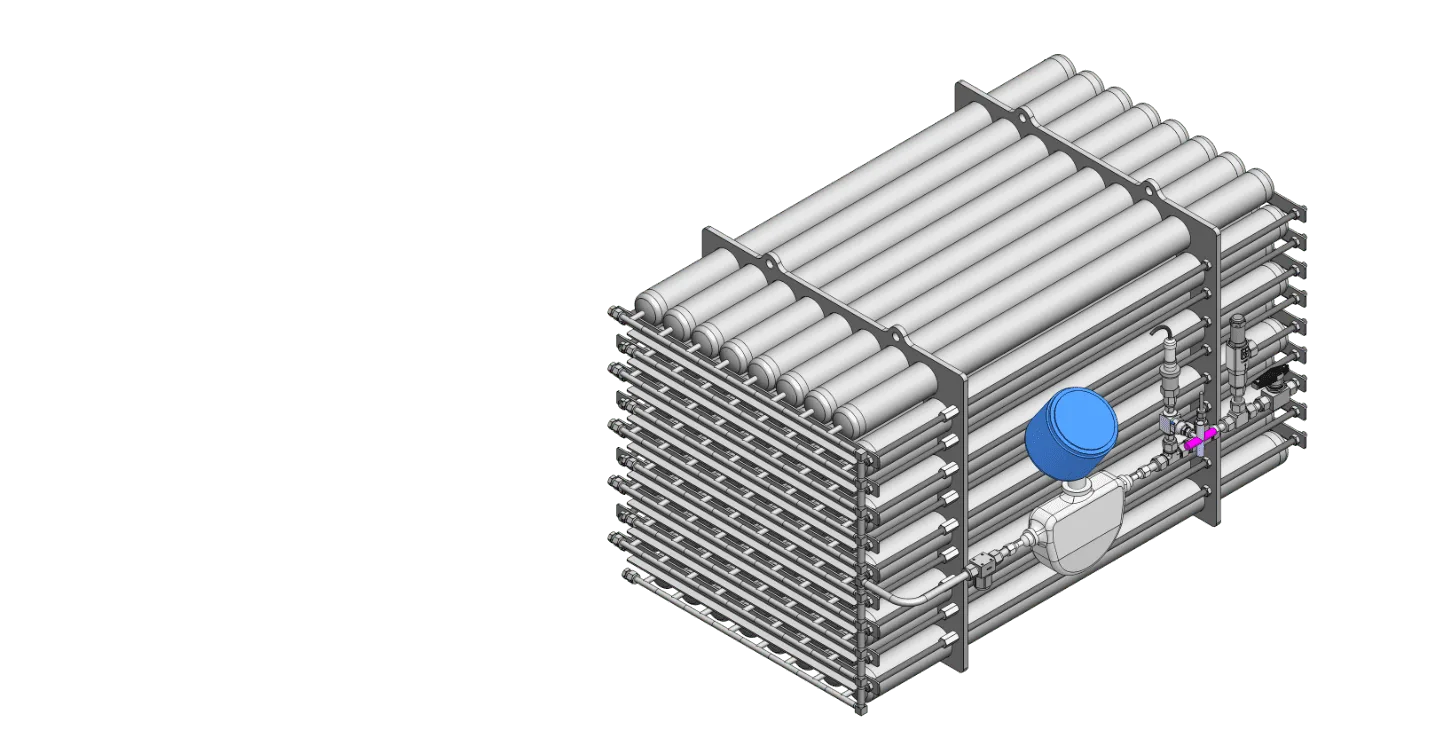

DASH M10

Hydrogen Storage Capacity: 10 kgH2
Weight: 1035 kg
Dimensions (LxWxH): 1.07x0.65x0.70 m

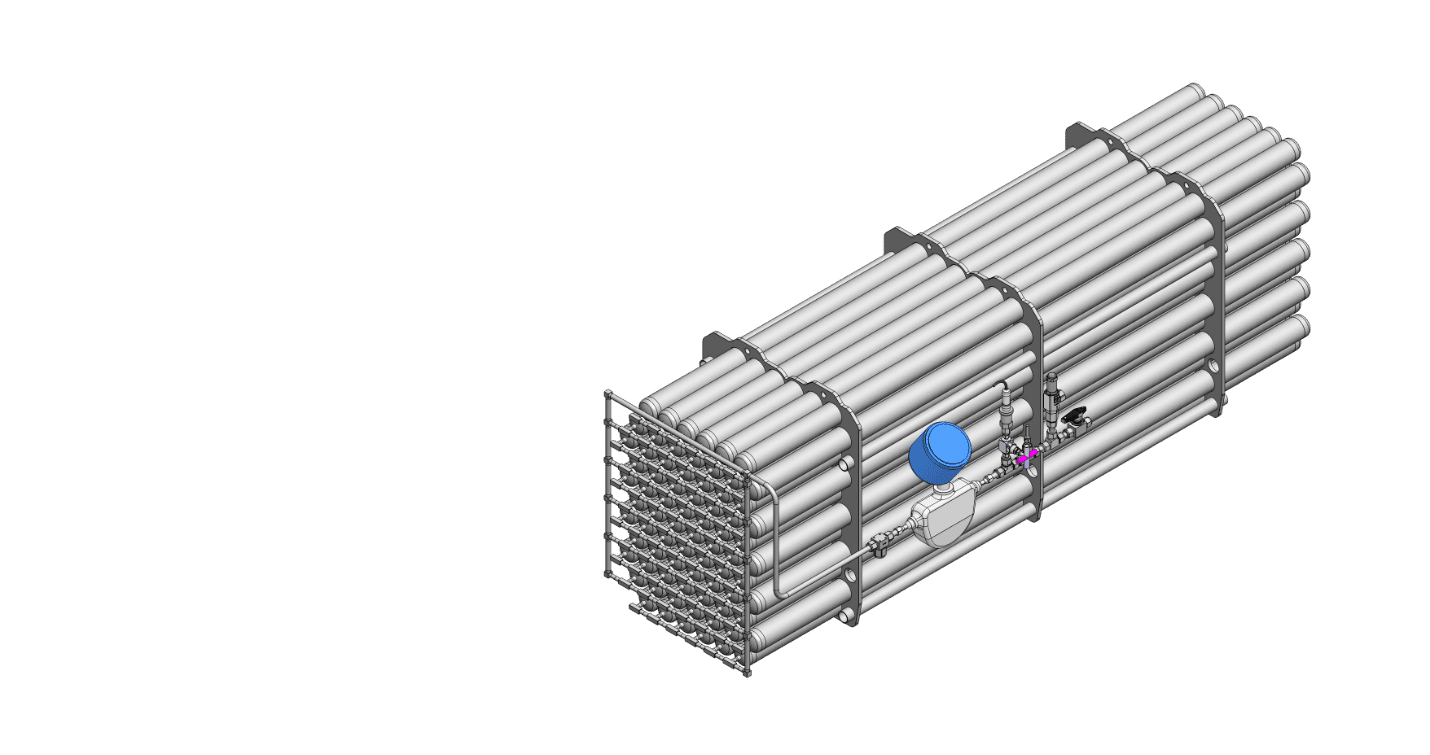

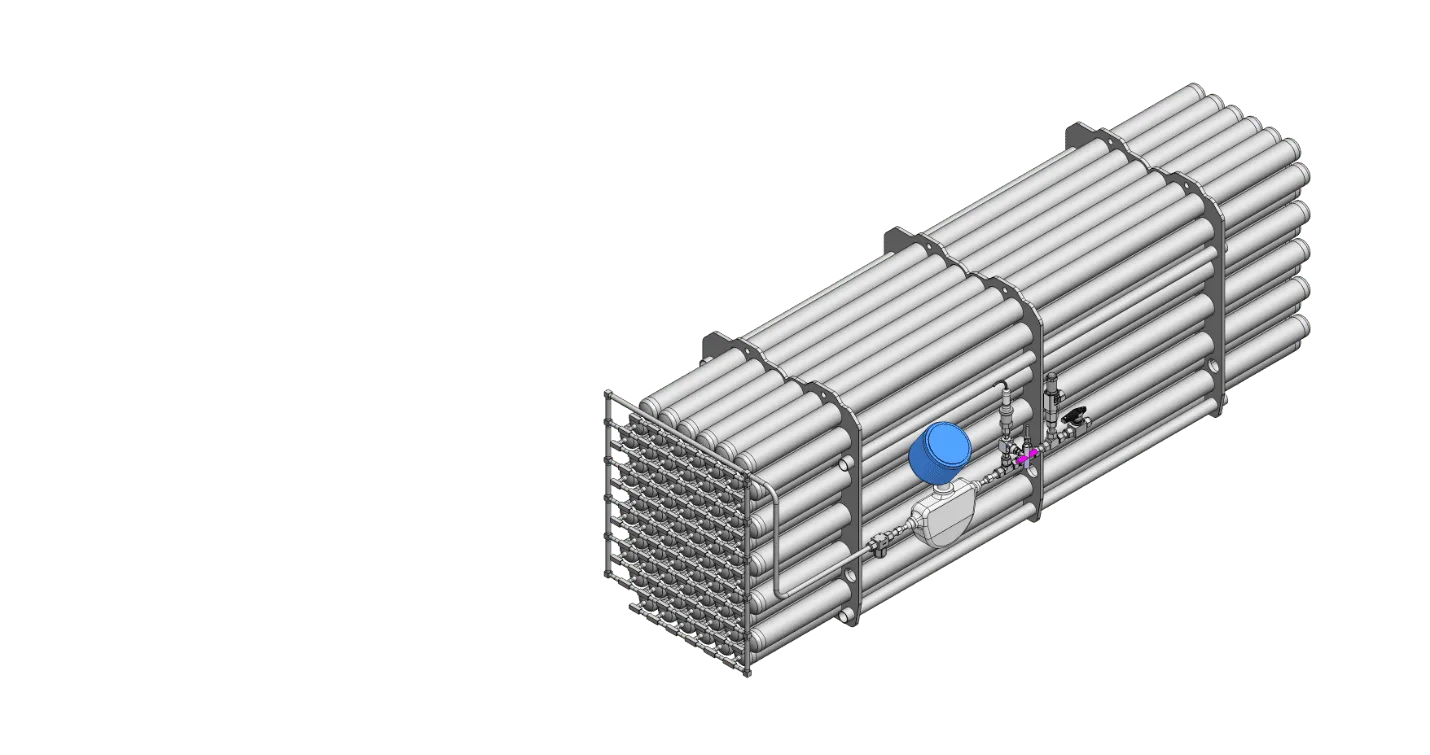

DASH M20

Hydrogen Storage Capacity: 20 kgH2
Weight: 1910 kg
Dimensions (LxWxH): 2.00x0.60x0.70 m

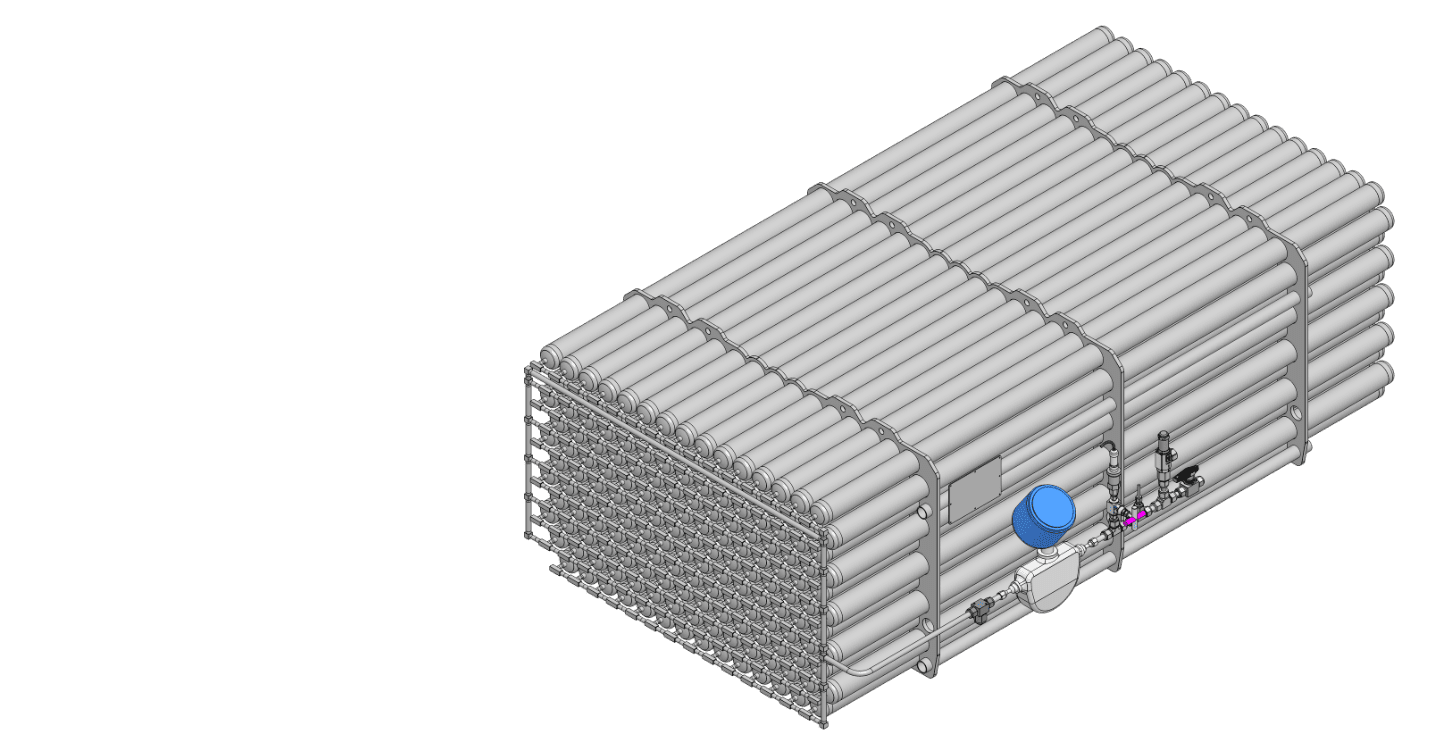

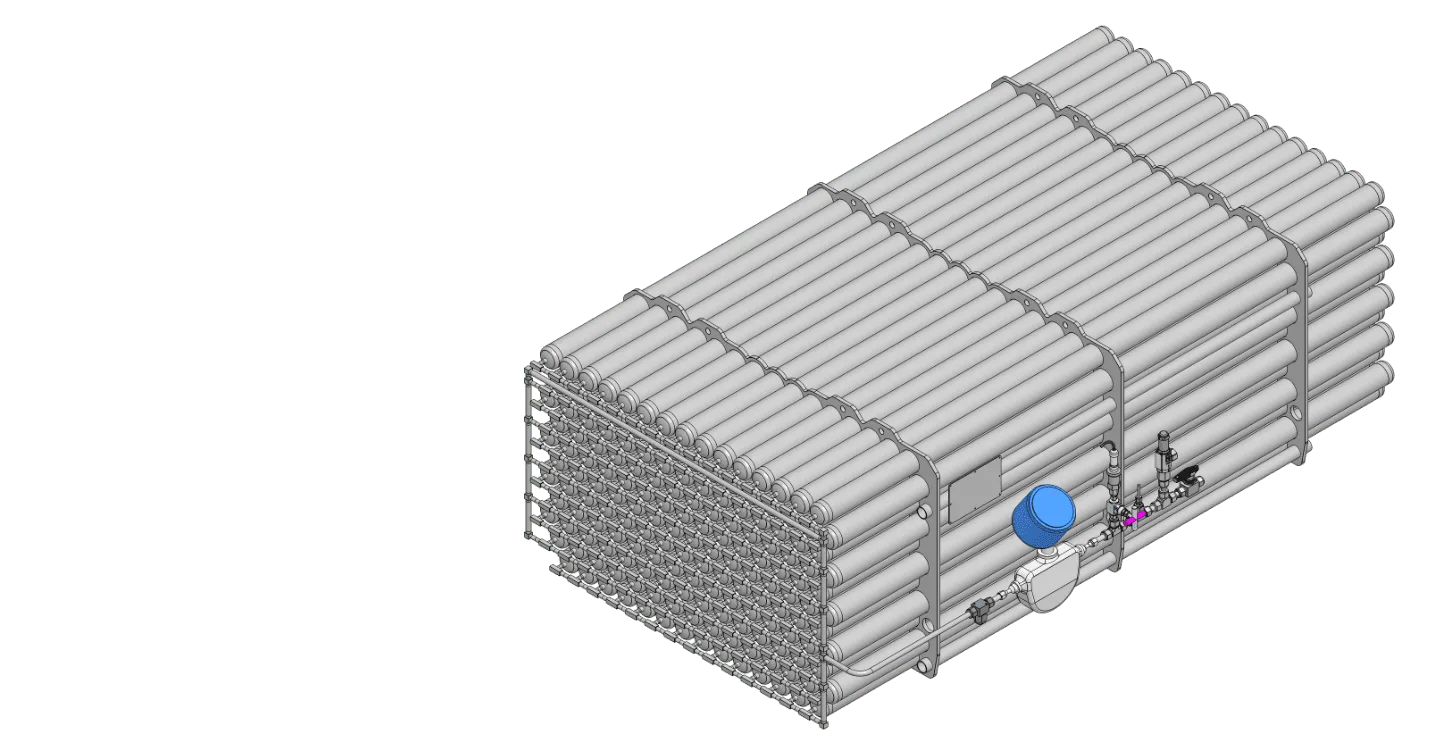

DASH M45

Hydrogen Storage Capacity: 45 kgH2
Weight: 4180 kg
Dimensions (LxWxH): 2.00x1.10x0.70 m

Specifications

DASH M-Series Storage M1 M3 M10 M20 M45
Storage Capacity 1 kgH2 3 kgH2 10 kgH2 20 kgH2 45 kgH2
Weight 111 kg 315 kg 1035 kg 1910 kg 4180 kg
Dimensions (LxWxH) 0.55 x 0.44 x 0.22 m 1.05 x 0.65 x 0.22 m 1.07 x 0.65 x 0.70 m 2.00 x 0.60 x 0.70 m 2.00 x 1.10 x 0.70 m
ATEX Zones None
Noise Emissions None
Recommended Hydrogen Supply Purity 99.995%
Hydrogen Charging Pressure 30 to 45 bar (g) ¹
Hydrogen Discharging Pressure 1 to 45 bar (g) ¹
Expected Service Life > 20 years
¹ Depending on Thermal Management System
